Gargantuan #Sleeper
by roirraWedorehT Posted on: 3/3/2022
Build Description
I'm after the most powerful components I can get my hands on with elegant easy-to-clean fan filters built into the very largest desktop case I can find. I never cared about looks or lighting (preferably pitch black), I care about how well (and cool, while keeping things simple) my computer works. I'm not even a gamer except once in a blue moon. I use many Hyper-V virtual PCs in my home environment.
Long-time (almost 40 years, started by mail order) customer of Micro Center,
roirraW "edor" ehT
Long-time (almost 40 years, started by mail order) customer of Micro Center,
roirraW "edor" ehT
Favorite Feature

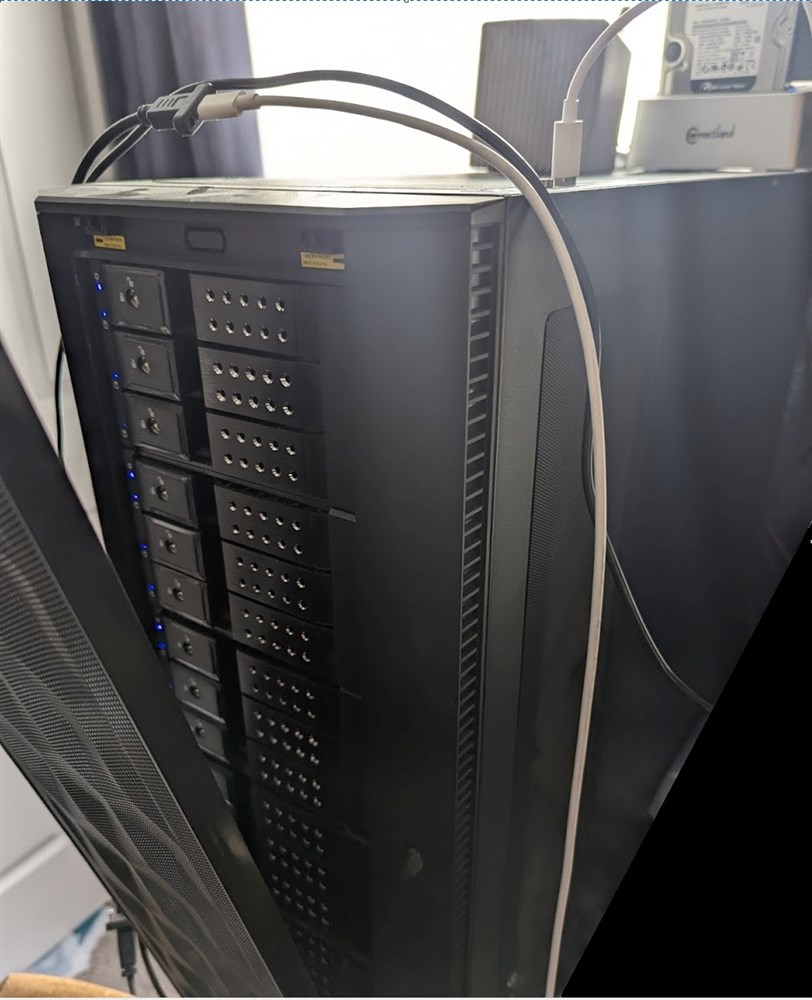

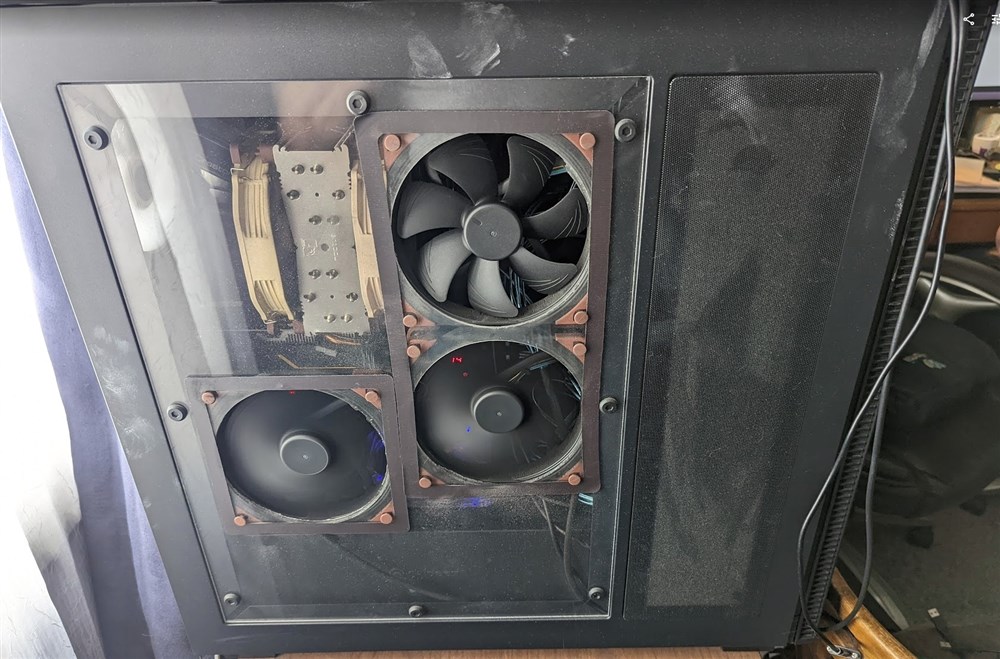

I replaced the side stock tempered glass with cast acrylic (which produces less static and is easier to drill or modify without cracking). Then I used a six-inch hole saw that I already had from putting a hole in my walls for cabling from the computer room to the living room, and put 3x Noctua very high speed (but running slowly) 140mm fans blowing inward (I have all fans blow inward except the top fans which blow up). I contacted the company that makes the case and bought a couple of spare magnetic, rigid filters just like they put on the top of this case, so I can cut them and put them over my fans on the side.Before I do that, I might reduce the number of fans I have on the side to two. I also have spare already sized cast acrylic sides to play with.
I also plan on making a mount just below the front grill (in the one inch space available between the desk and the bottom of the case proper - so about the height of the case legs) where I can place my two USB-C p
AMD Ryzen Threadripper 3960X 3.8GHz 24 Core sTRX4 Boxed Processor - Heatsink Not Included
Qty: 1
$1,399.99
MSI TRX40 Creator AMD sTRX4 eATX Motherboard
Qty: 1
$599.99
ASUS NVIDIA GeForce GTX 1650 TUF Gaming Overclocked Dual-Fan 4GB GDDR6 PCIe 3.0 Graphics Card
Qty: 1
$174.99

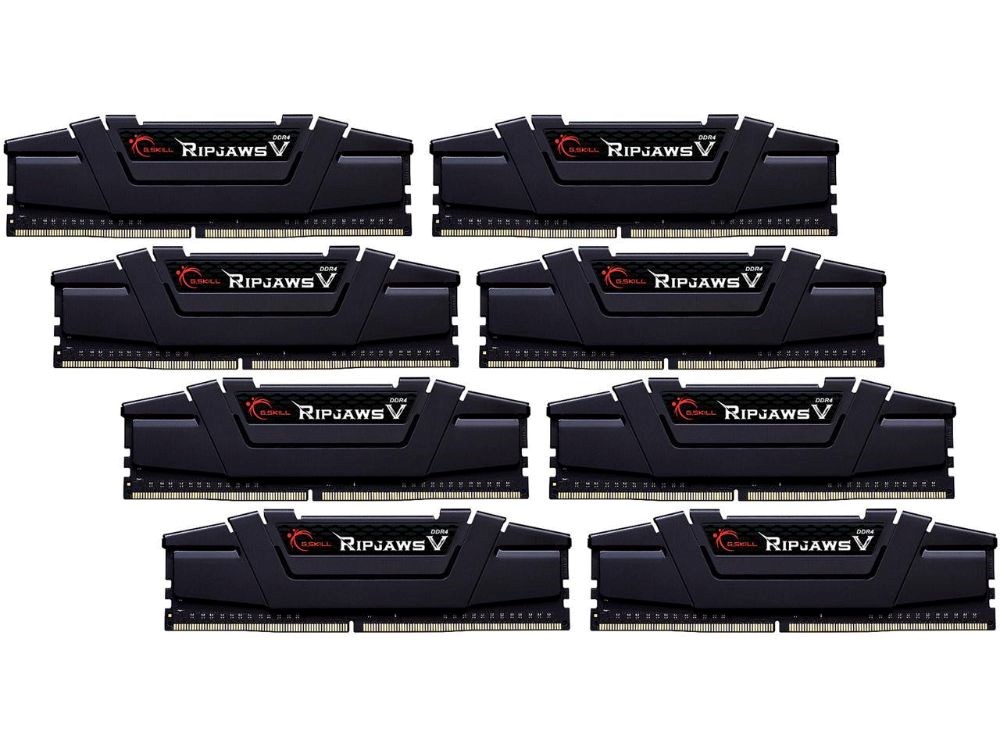

G.SKILL Ripjaws V Series 256GB (8 x 32GB) 288-Pin DDR4 SDRAM DDR4 3200 (PC4 25600) Intel XMP 2.0 Desktop Memory Model F4-3200C14Q2-256GVK
Qty: 1
$1,299.99

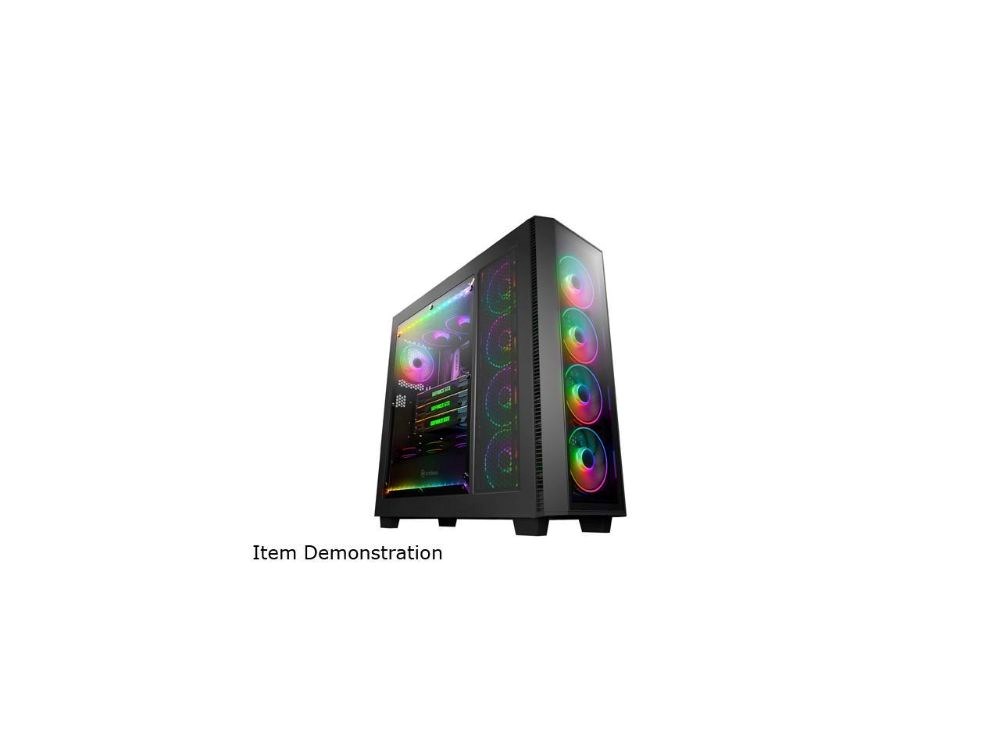

Anidees AI Crystal XL PRO RGB Full Tower Tempered Glass XL-ATX/E-ATX/ATX Gaming Case Support 480/360 Radiator, Includes 5 x 120 PWM RGB Fans / 2 x RGB LED Strips - Black AI-XL-PRO-RGB
Qty: 1
$299.90

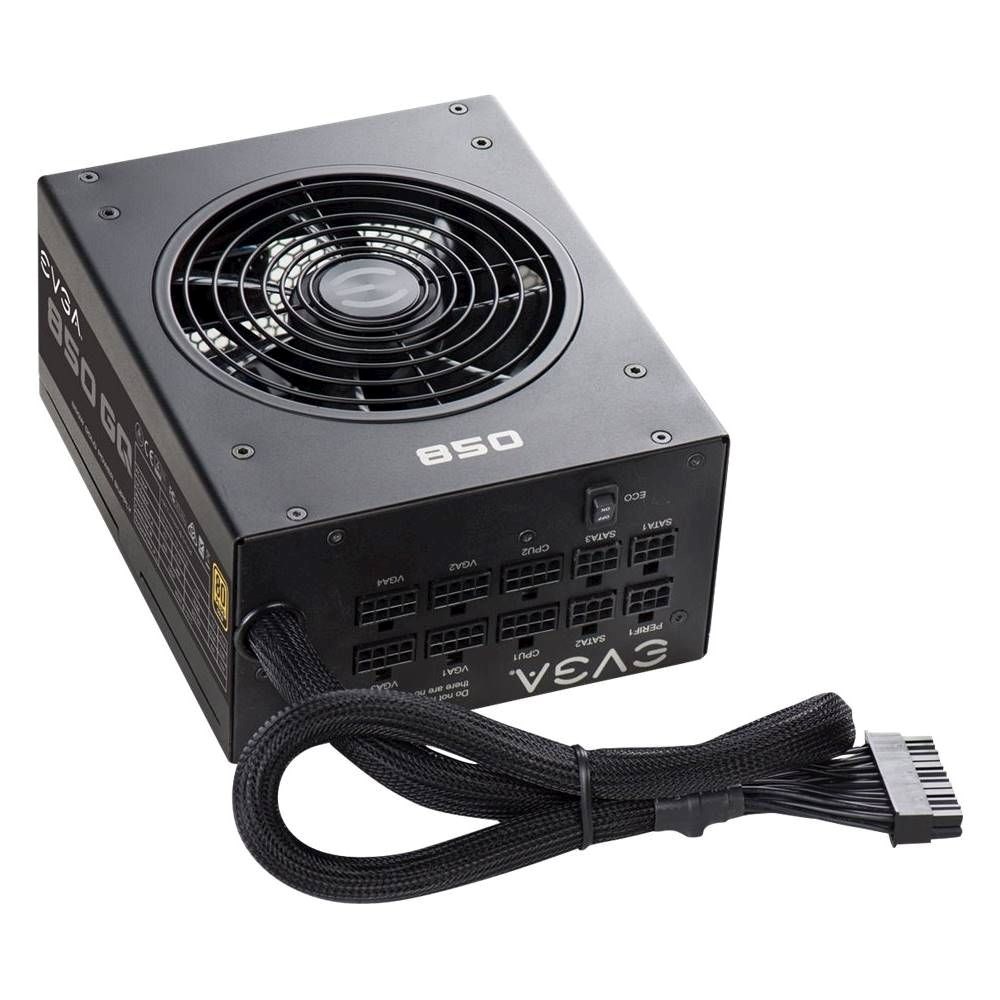

EVGA - GQ Series 850W ATX12V/ EPS12V 80 Plus Gold Modular Power Supply - Black Model:210-GQ-0850-V1
Qty: 1
$171.19
Noctua NH-U14S CPU Cooler
Qty: 1
$89.99

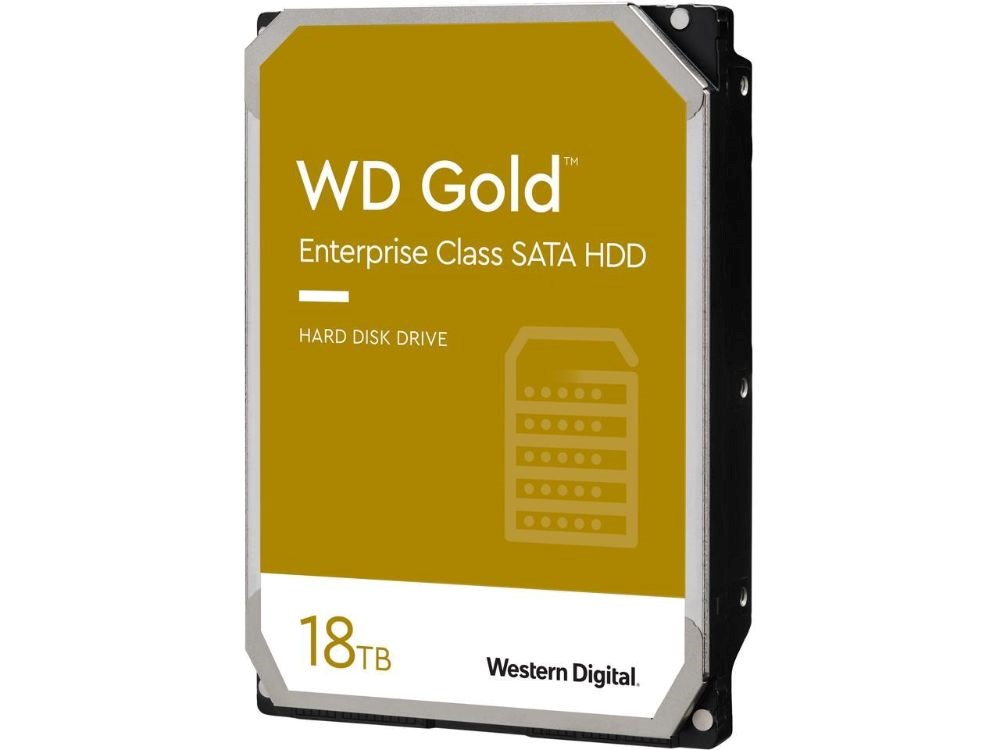

WD Gold 18TB Enterprise Class Hard Disk Drive - 7200 RPM Class SATA 6Gb/s 512MB Cache 3.5 Inch - WD181KRYZ - OEM
Qty: 6
$479.99

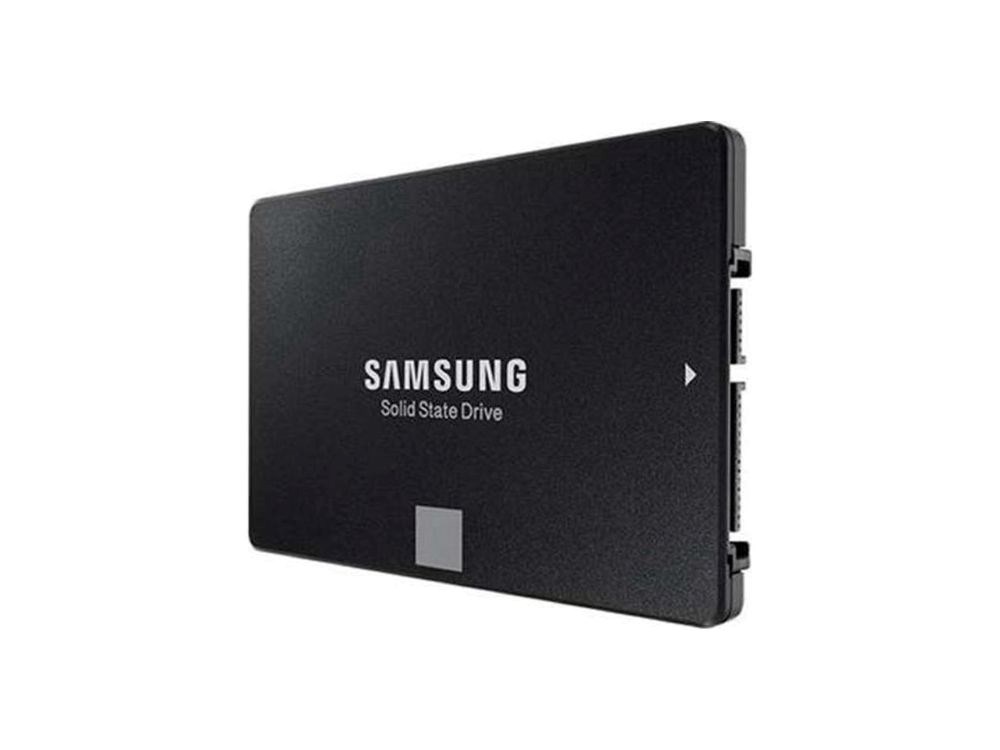

Samsung 870 EVO 1TB SSD 3-bit MLC V-NAND SATA III 6Gb/s 2.5" Internal Solid State Drive
Qty: 1
$114.99
SAMSUNG 860 EVO Series 2.5" 500GB SATA III 3D NAND Internal Solid State Drive (SSD) MZ-76E500E
Qty: 1
$69.99
Samsung 980 Pro SSD 1TB M.2 NVMe Interface PCIe Gen 4x4 Internal Solid State Drive with V-NAND 3 bit MLC Technology (MZ-V8P1T0B)
Qty: 3
$214.99

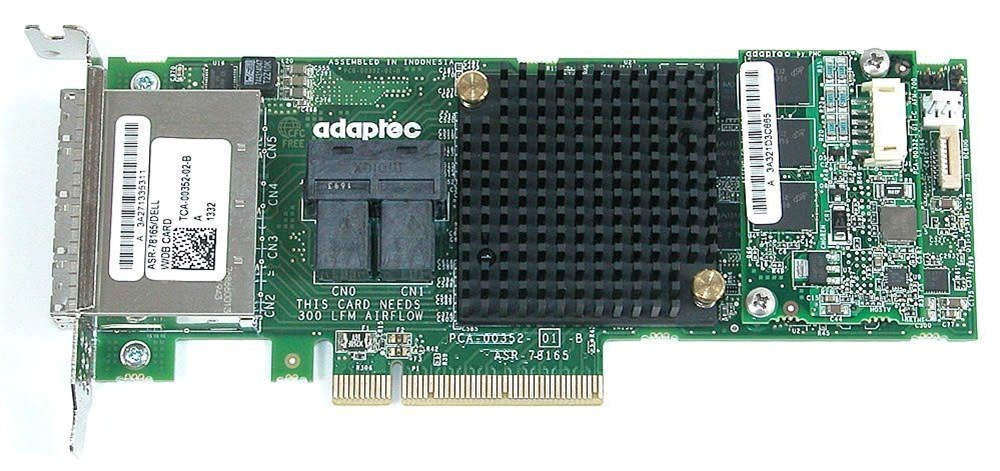

Microsemi Adaptec ASR-78165 SAS Raid Card 0KT1V
Qty: 2
$65.00

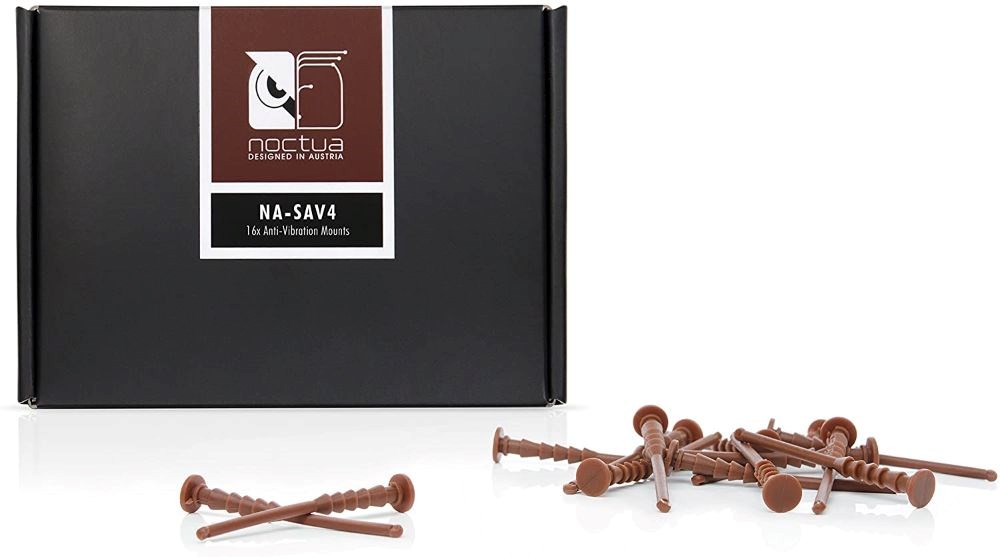

Noctua NA-SAV4, Silicone Anti-Vibration Fan Mount Set (16-Pack, Brown)
Qty: 1
$8.95

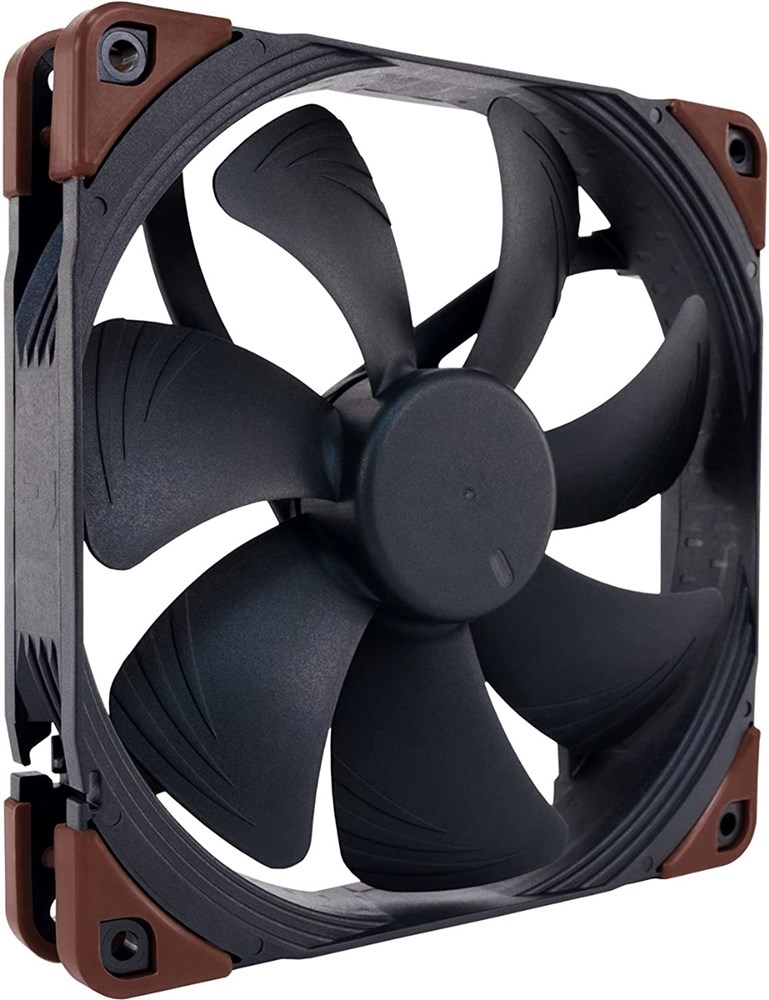

Noctua NF-A14 iPPC-3000 PWM, Heavy Duty Cooling Fan, 4-Pin, 3000 RPM (140mm, Black)
Qty: 3
$29.95

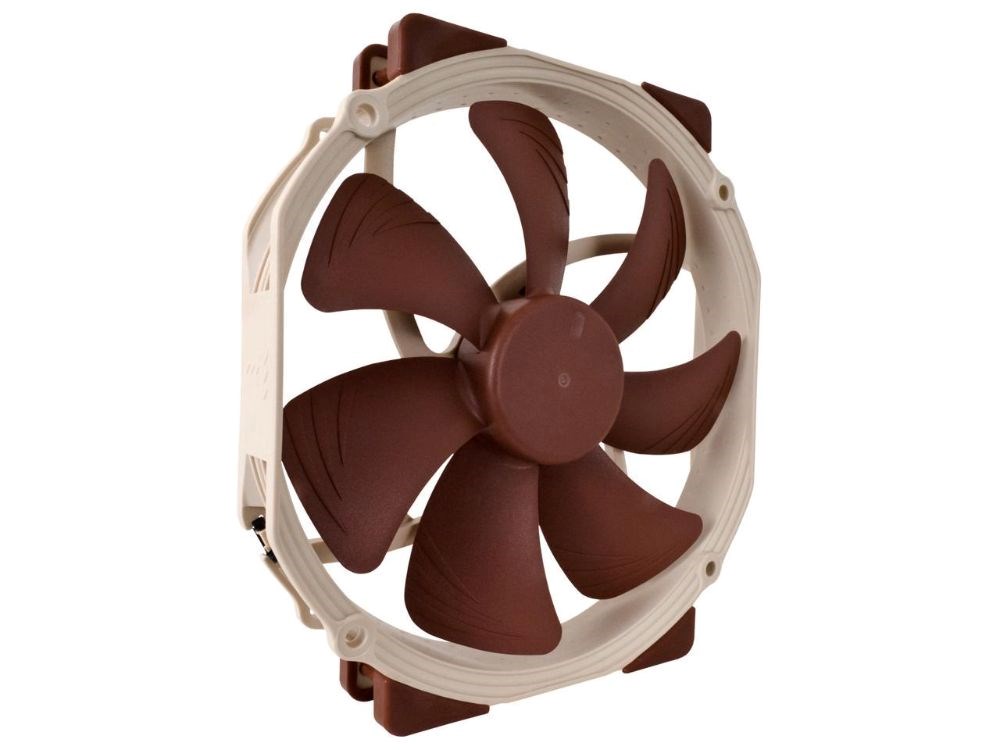

Noctua NF-A15 PWM, Premium Quiet Fan, 4-Pin (140mm, Brown)
Qty: 1
$23.95

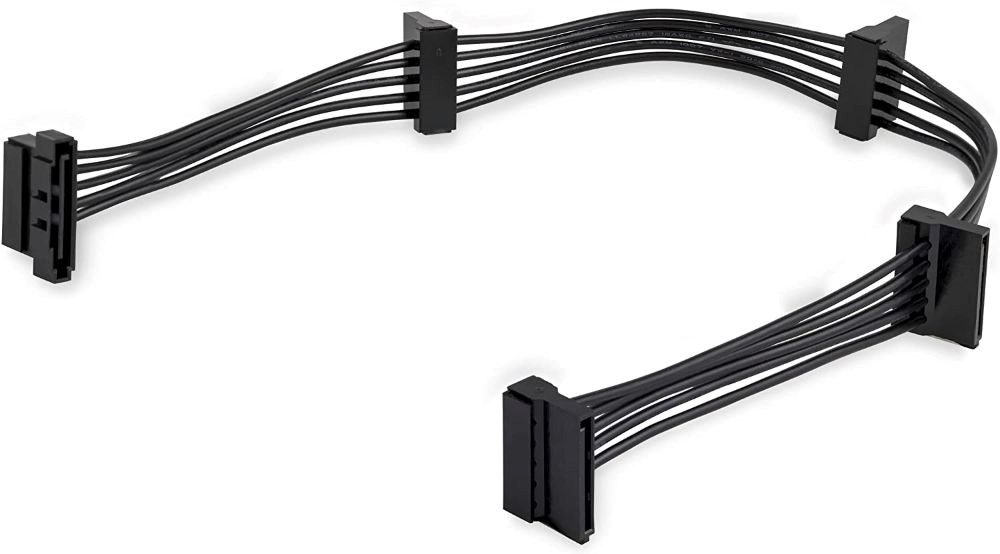

StarTech.com 15.7 in (400 mm) SATA Power Splitter Adapter Cable - M/F - 4x Serial ATA Power Cable Splitter (PYO4SATA)
Qty: 3
$4.99

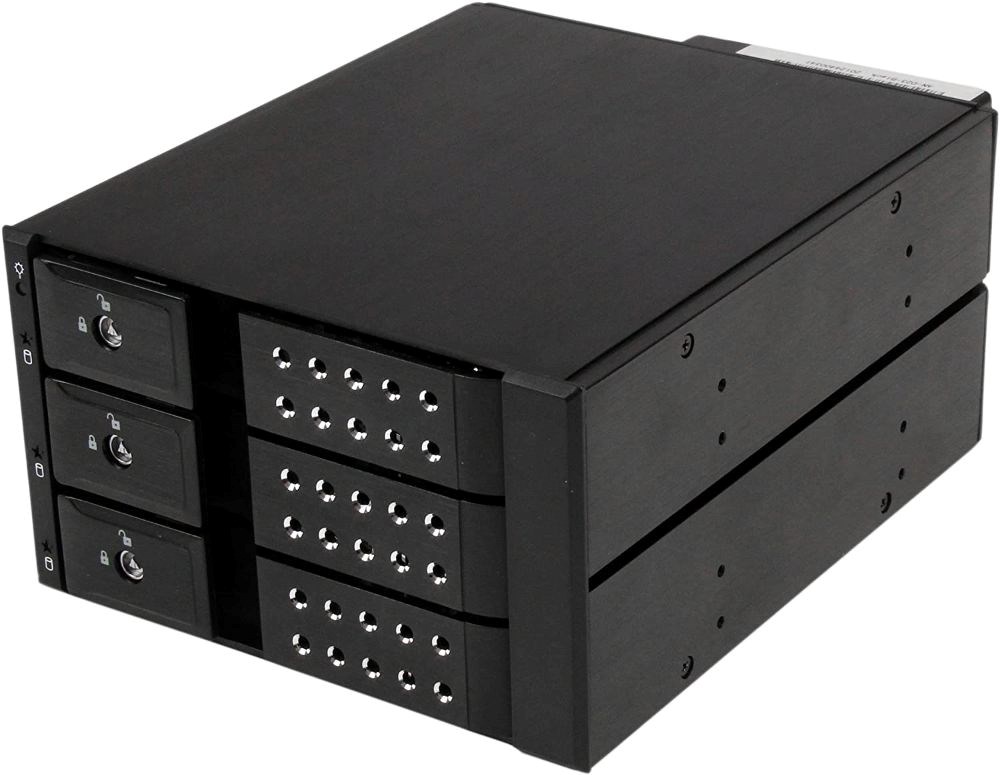

StarTech.com 3-Bay Hot Swap Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD - Aluminum Trayless Mobile Rack Backplane (HSB3SATSASBA)
Qty: 6
$73.99
