Mfr Part #:
  • 3.5'' Smart Touch Color Screen
  • Off-line Print
  • Air Filtering System
  • 119 x 65 x 160mm Print Size

LD-002R uses an LCD screen to mask an image of a layer over a UV light source. Comprised of hundreds of thousands of pixels, each a little rectangle itself, this tech leaves a telltale sign of the edges of these pixels on the print surface. Often barely visible, this effect can be lessened through the use of a digital processing called anti-aliasing, which interpolates between these edges, smoothing the effect out. LD-002R contains a double fan and active carbon air filtering system deodorizing the odor from resin.

Creality LD 002R Create resin printer projects. Turn imagination into realization HD LCD Resin 3D printer

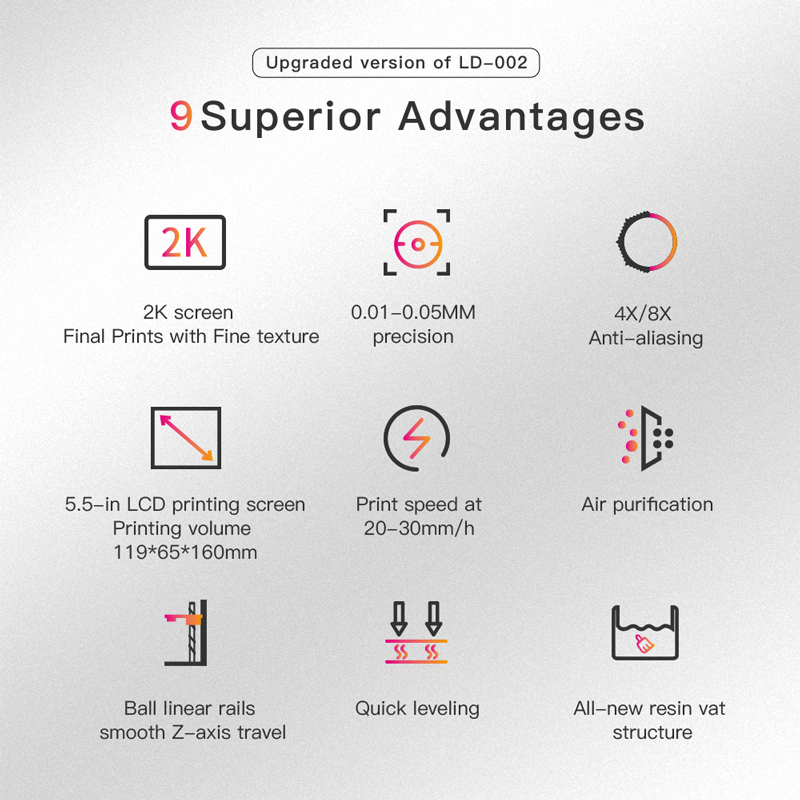

Upgraded version of LD 002. 9 Superior advantages, 2K screen, 0.01 to 0.05mm precision, 4x and 8x anti aliasing, 5.5 inch LCD oringint screen, 20 to 30mm per hour print speed, air purification, ball linear rails, quck leveling, all new resin vat.
2K micron level accuracy. Elaborate final prints.
Uniform light greatly improves precision. Uniform light evenness up to 90 percent. Improvedlight concentration. Stable light source decides higher print success.
Detailed processing reduces jagged edges.
LCD Molding technology.Supports multi task printing at the same time improving work efficiemcy.
Larger print volume 119 x 65 x 160mm enables bigger and larger prints. Infinite creativity.
Ball linear rails stable Z axis movement eliminates riffles on final prints producing a smooth surface and delicate texture.
Air filtering system. Double fans and active carbon air filtering deodorizes the odor from resin.
Easy manual leveling simplifies leveling process.
User friendly design. All metal body plus CNC aluminum. All new UI Interface.
Convenient resin vat cleaning. Small side open window simplifies maintenance for a better user experience.
Enjoyable artistic creation. Endless DIY fun, Explore your creativity with the integration of art and precision.

Product Parameters
Model: LD-002R Layer height: 0.01 - 0.05mm
Molding technology: LCD XY axis precision: 0.075mm
Print size: 119 × 65 × 160 mm Language: English / Chinese
Machine size: 221 × 221 × 403mm Print method: USB
Package size: 295 × 295 × 545mm File format: STL / CTB
Print speed: 20 - 30mm/h Machine weight: 7kg
Print support: Automatic / manual Package weight: 8.7kg
Nominal voltage: 100 - 240V Nominal power: 72W
Ouput voltage: 12V Consumables: Ordinary rigid photosensitive rsin, stnadard resin, elastomeric resin, highly resistant resin, dental resin
Mini Product Image

Creality LD-002R LCD Resin 3D Printer 3.5'' Smart Touch Color Screen; Off-line Print; Air Filtering System; 119 x 65 x 160mm Print Size
