HOW TO: Set up a WinBook Security DVR to Record on Motion Detection

Description: The WinBook Security DVR can be set to record video only when it detects motion. This guide will walk through how to do that.

  1.  Using the mouse connected to the DVR, right click anywhere on the screen and select Main Menu.

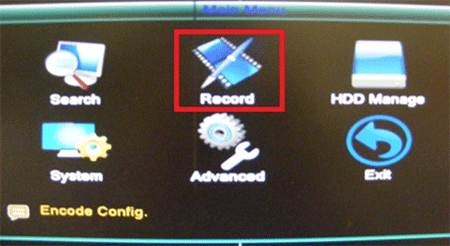

  2. Click the Record Icon

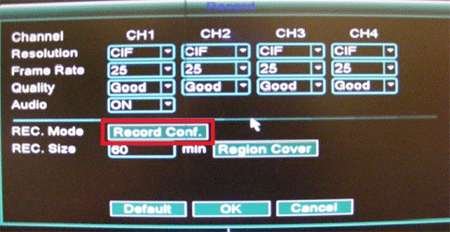

  3. Within the Record options, click the Record Conf. button

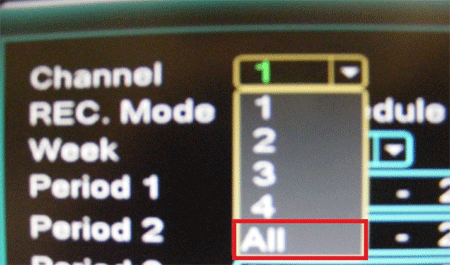

  4. Change the Channel to All



  5. Set the REC. Mode to Schedule

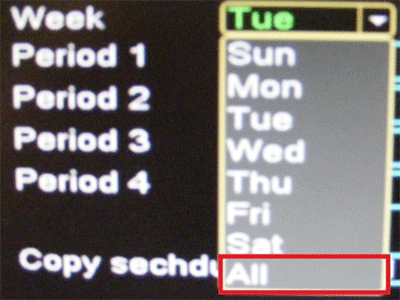

  6. Change the Week to All



  7. Period 1 by default should be set from 00:00 - 24:00. This is correct. To the right of Period 1, check the box for Detect.

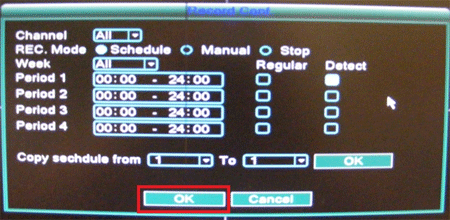

  8. This completes the record options. Click OK

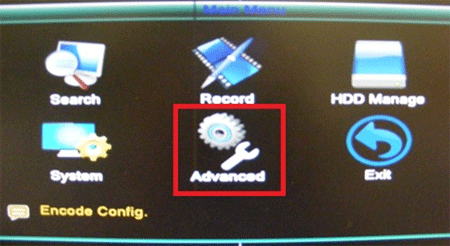

  9. Click the Advanced button

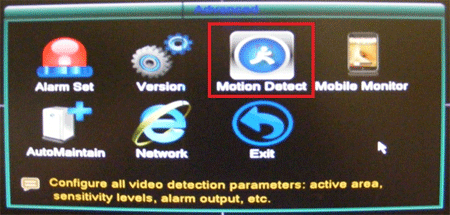

  10. Select the Motion Detect icon

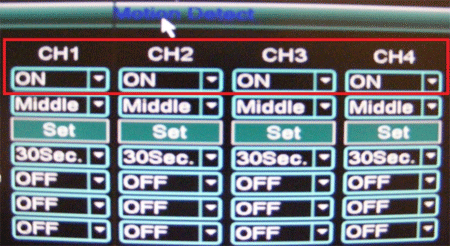

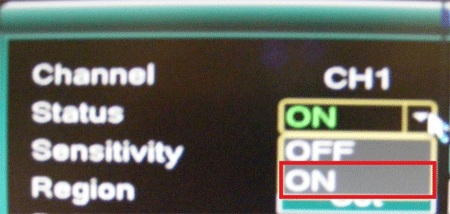

  11. Change the Status on CH1 - CH4 to ON to enable motion detection



  12. Click OK and exit all menus

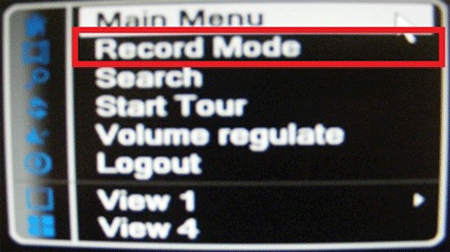

  13. Using the mouse connected to the DVR, right click anywhere on the screen

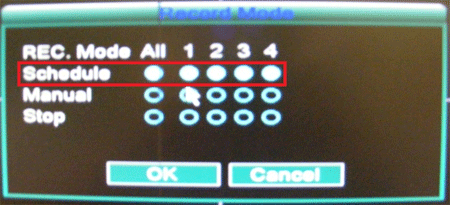

  14. Select Record Mode then select Schedule for All to complete setup.



For more assistance contact Technical Support here.
